Setting up a Connection to Power BI Online Using Devart ODBC Driver

In this guide, we will walk you through the process of setting up a connection to Power BI Online using the Devart ODBC Driver. This involves creating a DSN connection, setting up an on-premises gateway, and verifying Power BI report settings.

Step 1: Create a DSN Connection

1. Open ODBC Data Source Administrator on your PC.
2. Add a New DSN Connection.

Step 2: Set Up On-Premises Gateway

Install On-Premises Gateway:

1. Download and install the On-Premises Data Gateway from the Power BI website if you haven't already.
2. Follow the installation instructions to complete the setup.

Configure the Gateway:

1. During the installation process, create a gateway and assign a name to it, such as "devart15".
2. Make sure to install the gateway on the same PC where the Devart ODBC driver is installed.


Step 3: Verify Power BI Report Settings

Log in to Power BI Online:

1. Go to Power BI Online and log in with your account.

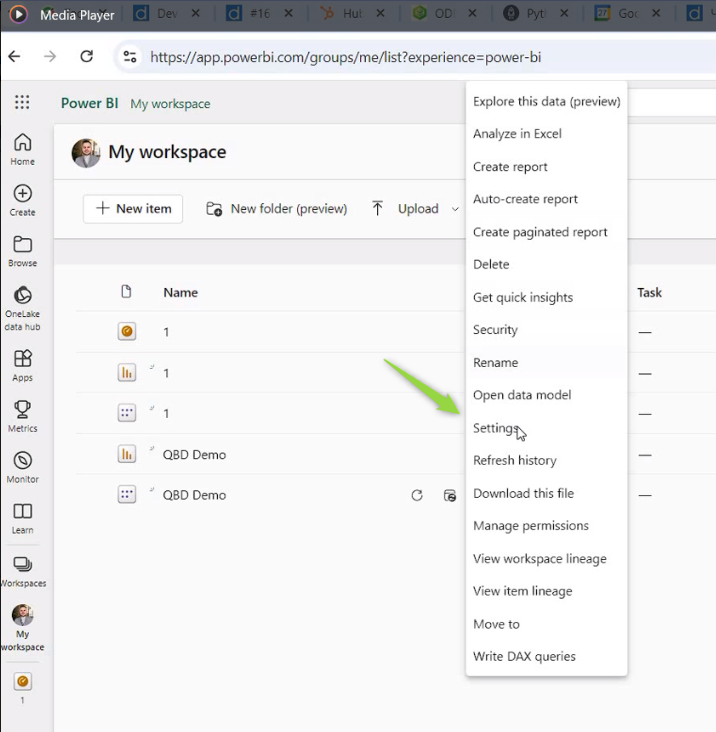

Navigate to Settings:

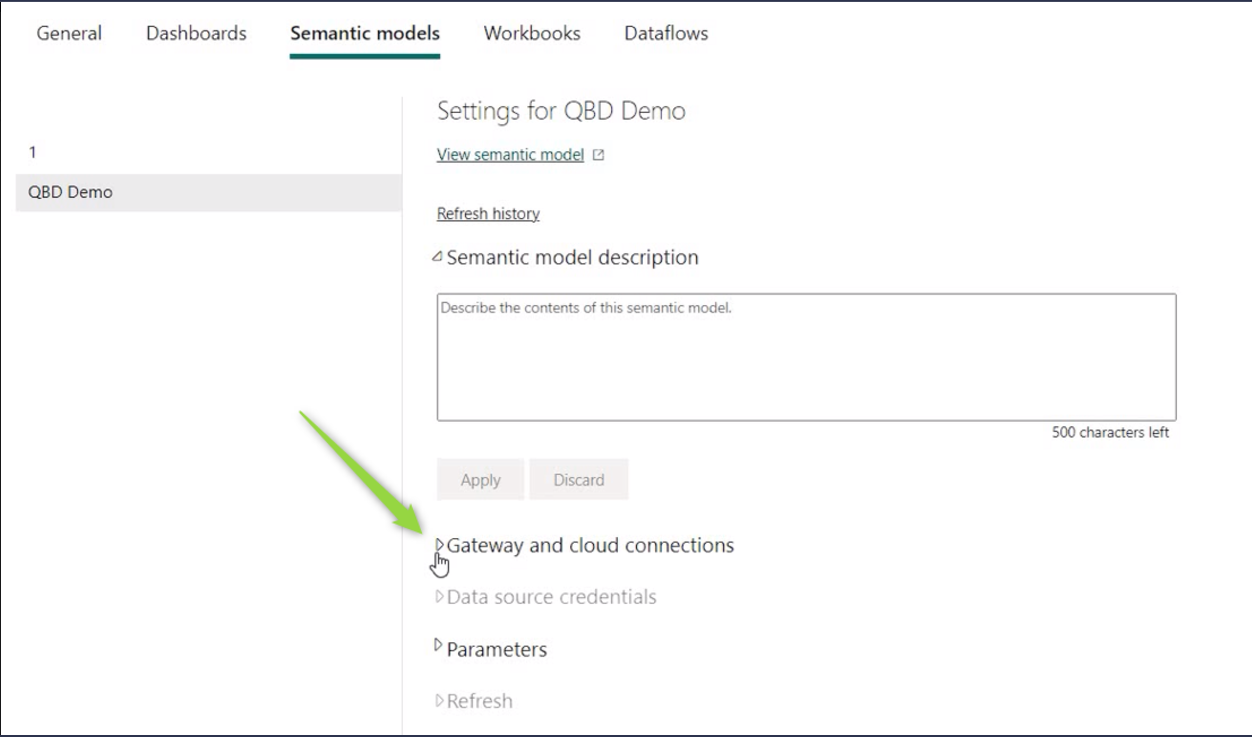

Click Gateway and cloud connections:

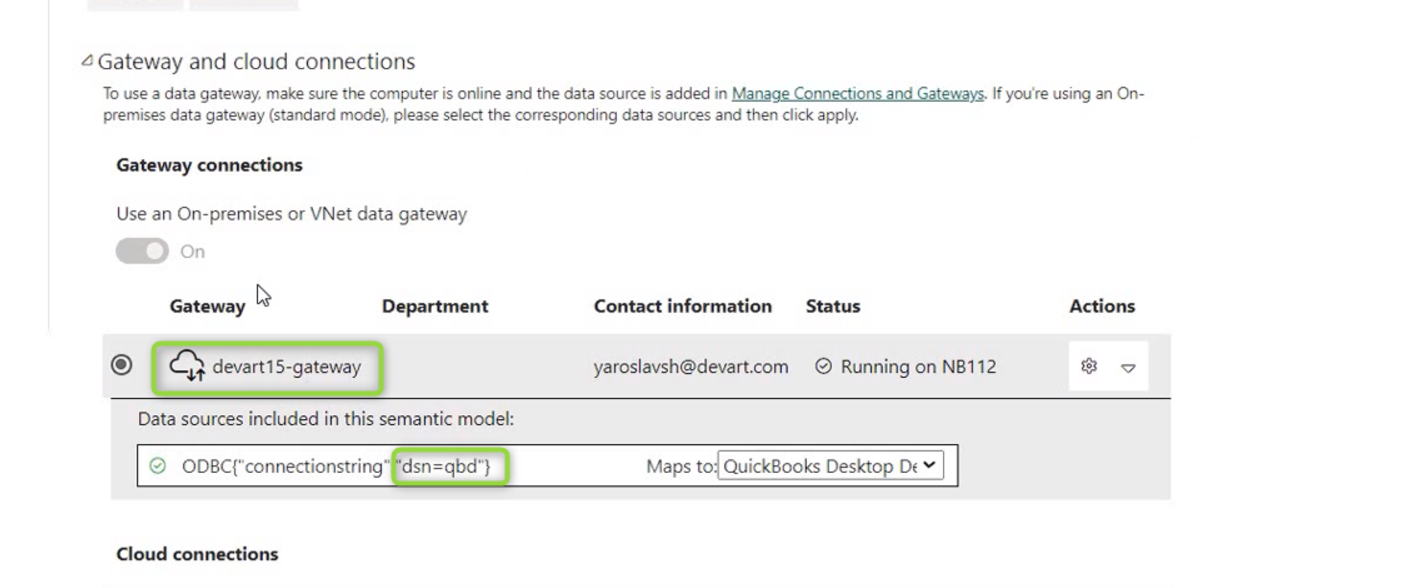

Verify the gateway configuration and ODBC source:

By following these steps, you have successfully set up a connection between Power BI Online and the Devart ODBC Driver using the on-premises gateway.
